Rafters and eaves projection
|

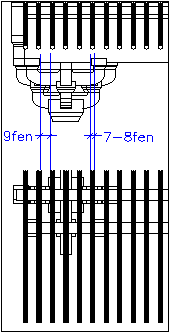

For a ting tang, the rafter diameter is 7 to 8 fen
The clear spacing is 9 fen; i.e., the centre-to-centre spacing
is 16 to 17 fen. (See illustration.) |
